Overhead radiation shields

The following screens are mounted on a support made up of an assembling base, a vertical column and an articulated arm. Can be fixed to the ceiling or to a trolley which slides on a rail (2.50m). With its electric cable, a second arm, such as a surgical lamp, can be mounted onto the column.

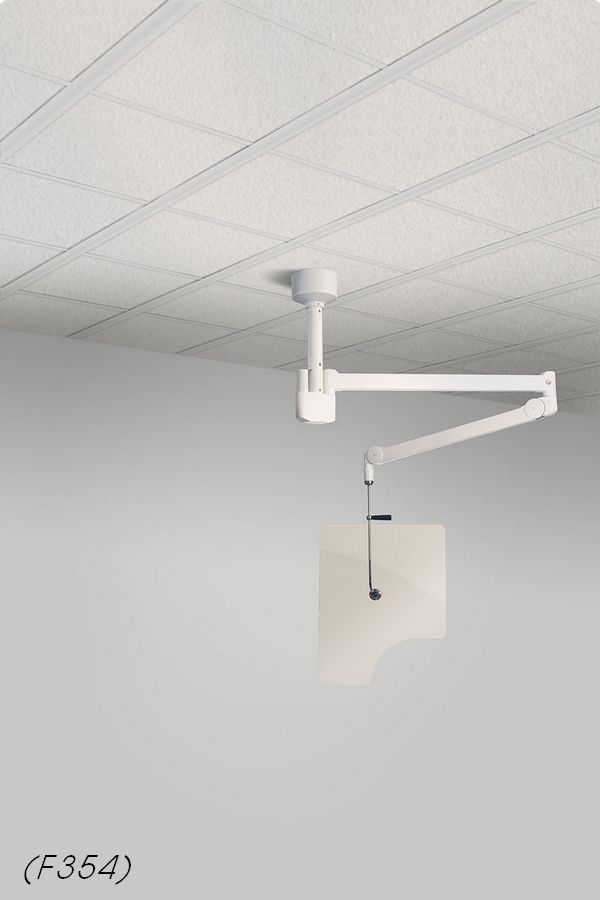

F354

Acrylic leaded screen 0.50mm Lead available with or without cut-out form. Fixed by central mounting ball. The orientation of the cut-out form is reversible when assembling.

Optional lower body shield 0.50 mm Lead.

Dimensions (Haut x larg) :

76 x 61 cm with cut-out
76 x 61 cm without cut-out
40 x 50 cm without cut-out

Options :

• Lower body shield 61cm with cut-out
• Lower body shield 61cm without cut-out
• Lower body shield 50cm
• Wall fixation

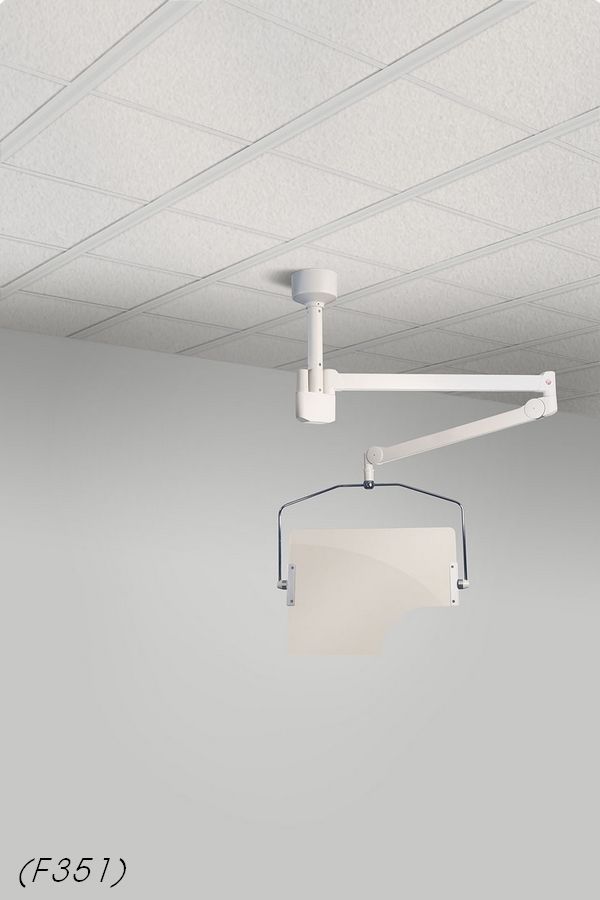

F351

Acrylic leaded screen 0.50mm Lead available with or without cut-out. Lateral fixations.

Optional lower body shield 0.50 mm Lead.

Dimensions (Haut x larg) :

60 x 80 cm with cut-out
60 x 80 cm without cut-out
40 x 50 cm without cut-out

Options :

• Lower body shield 80cm with cut-out
• Lower body shield 80cm without cut-out
• Lower body shield 50cm
• Wall fixation

F350

Glass screen 2mm Lead. Lateral fixation and lower body shield 0.50 mm Lead

Dimensions (Haut x larg) :

30 x 40 cm
40 x 50 cm

Option :

• Wall fixation
